Regular price $20,990.00

Unit price per

Style

The Ironwood CUT36 Cut-off Saw offers operators a safe and reliable, heavy-duty crosscutting solution.  The massive table surface of the CUT36 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

  • Cutting capacities offer maximum thickness up to 12” and up to 33” width
  • Table surface is precision ground to assure cutting accuracy
  • Powerful, high torque 20 HP motor drive ensure high stability at fast cutting speeds
  • Belt-tension adjustments and replacements are performed quickly and easily
  • Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths
  • Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
  • Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
  • Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
  • Cycle speeds can be conveniently adjusted from outside the machine cabinet
  • Retrofittable Ironwood infeed and outfeed roller conveyors can be added to improve handing and production efficiency
  • Machines are offered in right-handed feed and left-handed feed directions

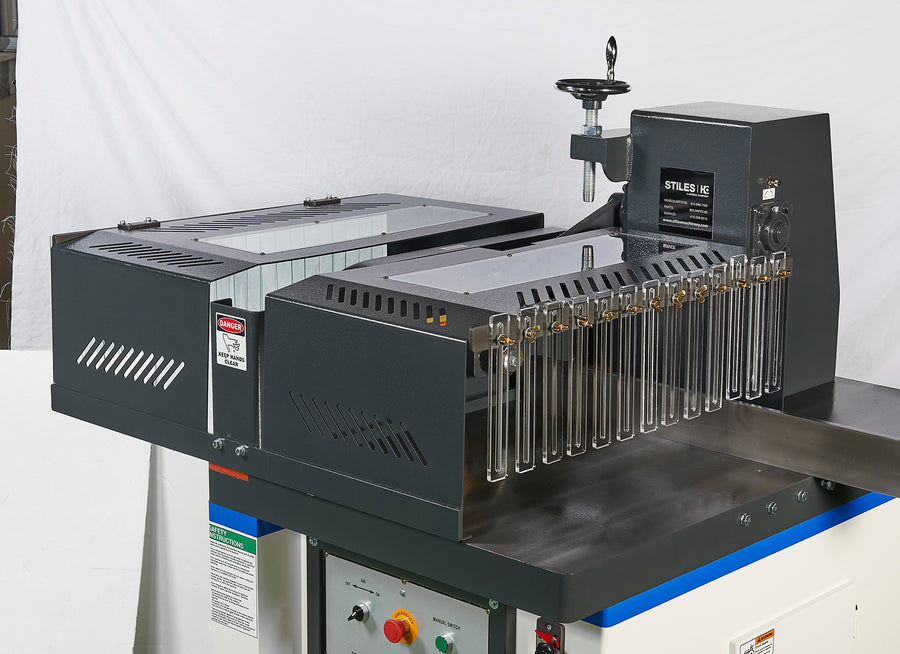

  • Advanced safety guard minimizes risk of operator’s hand accessing the cutting area
  • Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
  • Limit switches ensure safe tool changes, allowing access doors to be opened only when blade has stopped rotating
  • Ironwood’s optional spring-loaded rear clamp secures workpieces during cutting operations
  • Emergency Stop
  • One year warranty

Cutting capacity (thickness x width)

2" x 33" / 4" x 30" / 6" x 28" /
8" x 25" / 10" x 19" / 12" x 13"

Cycle operation

Pneumatic

Material feed direction

RH or LH

Saw blade size

36”

Saw arbor Ø

2”

Saw blade speed

1600 RPM

Table size

57 ½” x 32 ¼”

Motor

20 HP

Air consumption

351 l/min

Air pressure req

48 (l)

Dust port Ø

(4) x 5” ports

Gross weight

2,860 lbs

Packing dimensions

63” x 42 ¼” x 76 ¾"

   *460V power upgrades available upon request.  Additional charges may apply.
