Regular price $5,590.00

Unit price per

Feed

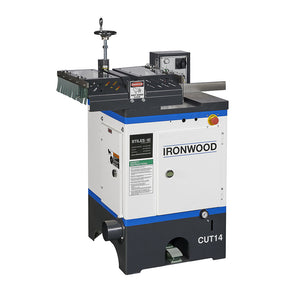

The IRONWOOD CUT14 Cut-off Saw offers operators a safe and reliable, compact crosscutting solution. The table surface of the CUT14 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

  • Cutting capacities offer maximum thickness up to 3” and up to 10” width
  • Table surface is precision ground to assure cutting accuracy
  • Adjustable cycle speeds offer cutting rates up to (95) strokes per minute
  • Powerful, high torque 5 HP motor drive ensure high stability at fast cutting speeds

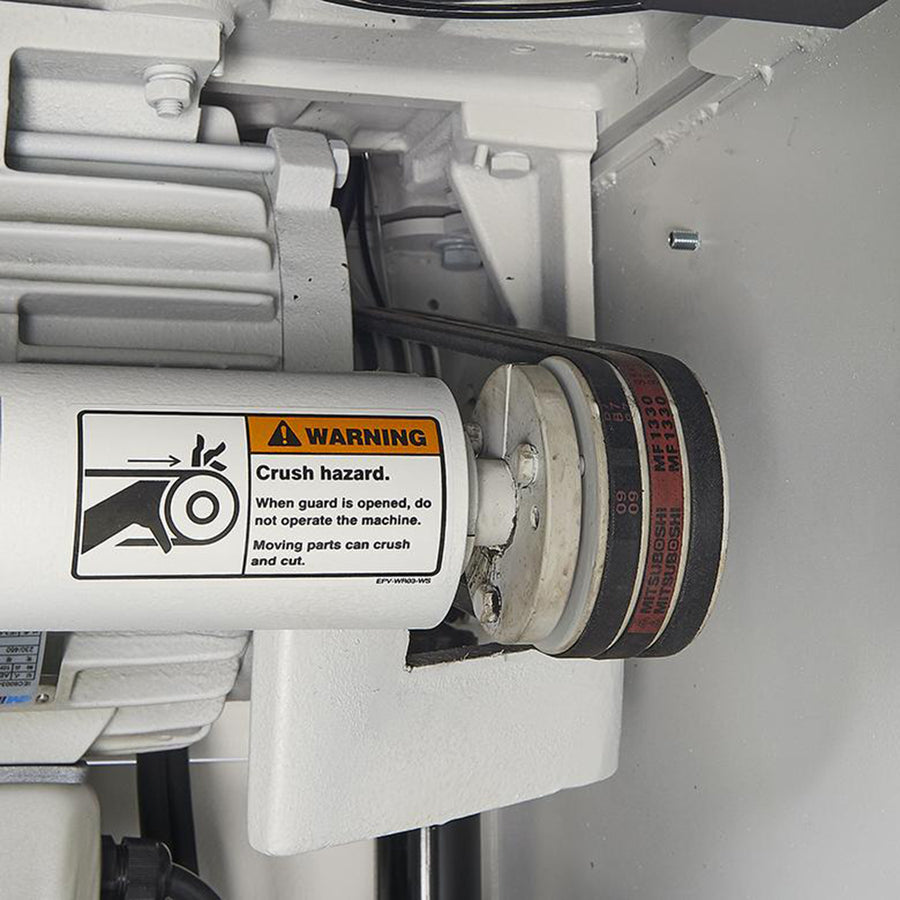

  • Belt-tension adjustments and replacements are performed quickly and easily
  • Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths

  • Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
  • Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
  • Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
  • Cycle speeds can be conveniently adjusted inside machine cabinet
  • Machines are offered in right-handed feed and left-handed feed directions

  • Safety guard minimizes risk of operator’s hand accessing the cutting area
  • Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
  • Limit switches ensure safe tool changes, allowing access doors to opened only when blade has stopped rotating
  • (Optional) Dual-Hand Controls replaces foot pedal activation with dual-push button activation, requiring both buttons to be simultaneously pressed in order for the saw to cycle, and thereby reducing the potential for injury by removing operator's hands from the cutting area
  • Emergency Stop
  • Conforms to UL / CSA electric standards
  • Six months electrical warranty
  • One year mechanical warranty
Cutting capacity (thickness x width) 1” x 10”/ 2” x 9” / 3” x 8”
Cycle operation Pneumatic
Material Feed Direction RH or LH
Saw blade size 14”
Saw arbor Ø 1”
Saw blade speed 4100 RPM
Table size 23 ¼” x 25”
Working table height 34 ¼”
Motor 5 HP
Dust port Ø / CFM 4” / 450
Air pressure  80-90 PSI
Air consumption 12 CFM at 45 CPM
Gross weight 640 lbs
Packing Dimensions 30" x 34” x 51”
Electrical Connection* 230 Volts | 3-phase | 60 Hz.

   *460V power upgrades available upon request.  Additional charges may apply.
