Apply Now Payments As Low
As $243.00 / Month

Regular price $10,990.00

Unit price per

IRONWOOD’s SL series of sliding table saws brings ultimate flexibility and versatility to an intuitive cutting solution.  Designed to be a blend of innovation, dependability, and quality, the SL series delivers the quality and precision required for the final chip-free cut, improving the results of subsequent machining (i.e. edge-banding, drilling, etc.).  This reduces assembly time, as parts fit easier, material costs are reduced, and the need for other machinery can be eliminated.  Ideal for panel and solid wood processing, the series is capable of making perfect miters, as well as rip, jointing, and cross cuts.

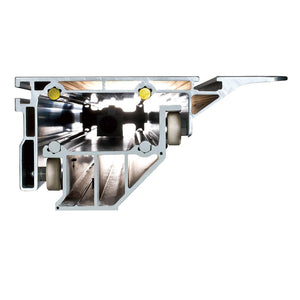

The SL Series features aircraft grade aluminum sliding tables manufactured in Europe with perfected, vertical guidance for accurate and precise movement.  The chrome hardened guiderails ensure that the sliding carriage traverses straight, without any lateral movement, ensuring square cuts over the full cutting length.  These features help reduces operator fatigue for an operation that is totally maintenance free.

The rugged cast iron frame is robotically welded for absolute precision and strength to support heavy cutting operations.  The saw unit is electronically balanced and precisely positioned to provide vibration-free performance during the cutting process.  In additional to its heavy-duty design, the Ironwood SL series complies with the highest standards of international efficiency by using IE3 motors which reduce energy consumption over the life of the machine.

IRONWOOD’s SL100 has easy to access on and off buttons located in the machine base. Handwheels on the machine’s front and side faces let the operator easily adjust blade height and tilt. Tilting of saw unit, variable up to 45.5°, is accurately achieved with a dial read out in the front control panel.

  • 2600 mm sliding table for cutting length of 98.6” with crosscut fence mounted
  • IRONWOOD’s double-roller carriage features a direct vertical load transfer system, to ensure smooth sliding table motion and straight, square, chip-free cuts
  • Large steel rollers guide the moving table with absolute precision between the hard-chromed guide bars
  • Integrated mechanism for locking the sliding table in the forward and middle positions
  • Maintenance-free system requires no oiling, ensuring years of smooth movement and accurate cutting even after decades of hard work, dust and dirt
  • Additional sliding table lengths available by special request
  • Main Saw Drive System
    • 3.7 kW (5 HP) high efficiency IE3 motor
    • Single speed 4200 RPMs
  • Tilting Range
    • Tilting range 0-45.5 degrees
    • Robust cast iron tilt trunnions incorporating the traditional tongue and groove connection system for precise and smooth tilting
  • Blade guard
    • Overhead guard includes two inserts for straight and angled cuts
    • Integrated extraction helps keep the shop floor clean
  • Two (2) Axis Manually Adjusted Scoring System
    • 0.37kW (0.5HP) | 8,000 RPM
    • 120mm | 4.72" blades (included)
    • Manual Adjustment for height and kerf
    • Shims included for kerf adjustment
  • Scoring unit with manual raise, lowering, and lateral adjustment is ideal for absolutely chip-free cutting of melamine, vinyl, high pressure laminate and veneered particleboard, even when saw blade is tilted

  • Manual Rip Fence with fine adjustment
    • 1300mm (51”) rip capacity
    • Precision fine adjustment for a high degree of accuracy
    • Hard chromed round bar for smooth fence movement
    • Swing-away rip fence for dividing large workpieces
  • Fixed Crosscut Fence
    • Crosscut fence with stops to 3200mm or 126”
    • Fence can easily be slid from the front to back position without lifting, for various cutting operations
    • Includes two (2) adjustable flip stops
  • CNC manufactured, robotically welded, five-sided torsion resistant base with integrated control cabinet
  • Easily accessible forklift slot for moving machine
  • Flat machine front for interference free saw operation
  • Includes mountable single-sided miter fence for miter cuts
  • Electrics according to UL listings
  • Emergency stop buttons
  • Electric brake on main and scoring motors
  • Multiple riving knives included with the machine
  • Anodized aluminum parts
  • Scales with metric and inch dimensions
  • Main and scoring blades included
  • Clamping shoe for straight-line rip cuts
  • Tool kit and instruction manual
  • Three-year warranty mechanical.
  • One-year warranty electrical

Sliding table length

2600 mm (102")

Cutting length

2505 mm (98.6")

Manual rip fence with fine adjust

1300 mm (51")

Fixed crosscut fence

3200 mm max second flip stop

Angle Capacity – Fixed Crosscut

90°

Cutting depth maximum

90° cuts - 100 mm (3.93")*

45° cuts - 70 mm (2.75")*

Main saw motor

3.7 kW (5 HP)

Saw speed(s)

Single Speed - 4200 RPM

Standard main blade

305 x 3.2 x 30 mm | Z=100

Main blade arbor diameter

30 mm

Scoring saw motor

0.37 kW (0.5 HP) 8000 RPM

Scoring blade diameter

120 mm (4.72")

Tilting Capacity

0 – 45.5°

Dust channel outlet (saw guard)

                              (machine base)

76 mm (3”)

100 mm (3.9”)

Electrical Requirements*

230V | 3-Phase | 60 Hz.

Dust Extraction

350 CFM min.

Net machine weight

709 kg (1,565 lbs.)

   *460V power upgrades available upon request.

Single Phase machines also available upon request.  Additional charges and/or lead times may apply.
