Apply Now Payments As Low
As $213.00 / Month

Regular price $10,990.00

Unit price per

The IRONWOOD TS750 Tilting Spindle Shaper caters to the American craftsman as it offers unparalleled smooth cutting operations and performance.  This machine features a large, heavy-duty cast iron ground and polished table with insert rings to ensure maximum rigidity and stability for heavy cutting operations.  The Ironwood TS750 shaper highlights a backward tilting interchangeable spindle, quick set-up and adjustments, and maximum stability and precision.

  • 1 ¼” interchangeable spindle, but can also be fitted with ½”, ¾”, 1”, 30 mm and 35 mm sizes
  • Backward tilting spindle provides angled cutting from 10° to -45° with angle indicator, and is adjusted with the side-panel handwheel adjustment
  • Increased table sizes provide users with additional support when working with larger, more cumbersome work pieces
  • Driven by a manual 5-speed, dynamically balanced, v-belt pulley system for speeds of 3000/4000/6000/8000/10,000 RPM
  • Heavy-duty, cast iron fence assembly features halves that can be precisely adjusted by a micro-metric adjustment knob
  • Dependable, fence assembly with fine-adjustments and digital readouts on both the infeed and outfeed
  • Innovative adjustable guide finger design to provide additional support for the work piece as well as safer operations as the operator passes material through the cutter
  • Quick, manual speed adjustments and are conveniently located through the front panel of the shaper
  • Spindle speed indicator lights to assist the operator within the control panel
  • Ironwood’s tooling assembly is precisely designed and constructed to secure absolute precision and greater cutting consistency, the spindles are dynamically balanced for extra smooth running at high speeds
  • Cast iron miter gauge and hold-down device for improved user operations
  • Spindle hand wheel controls for the rise, fall, and tilt are conveniently positioned on the side of the machine with digital indicators
  • Operational controls are located within the centralized control panel and include all major control functions:
    • Forward and reverse spindle rotation with a directional indicator light to ensure safe climb-cutting operations
    • Spindle speed indicator lights
    • Power on/off switches
  • Electric spindle brake
  • Spindle Lock - with limit switch safety, prevents the machine from starting when engaged
  • Spindle Protection Guard
  • Emergency Stop
  • All electrics are UL and CSA approved
  • One year warranty



Working table

960 mm x 1300 mm

Table height

900 mm

Vertical spindle stroke

180 mm

Under the nut

160 mm

Speeds

5 Speeds (3000, 4000, 6000, 8000, 10000 RPM)

Spindle height adjustment

Handwheel

Spindle position display

Mechanical Readout

Tilt adjustment

Handwheel

Spindle tilt

10° to -45° (BACK)

Spindle size

1.25" x 6"

Spindle rotation

Fwd / Rev

Max tool diameter (below table)

310 mm

Max tool diameter (above table)

360 mm

Motor

7.5 HP IE3

Shipping dimensions

1400 x 1292 x 1400 mm

Shipping weight

1,650 lbs

Dust Extraction

5”/ 4”

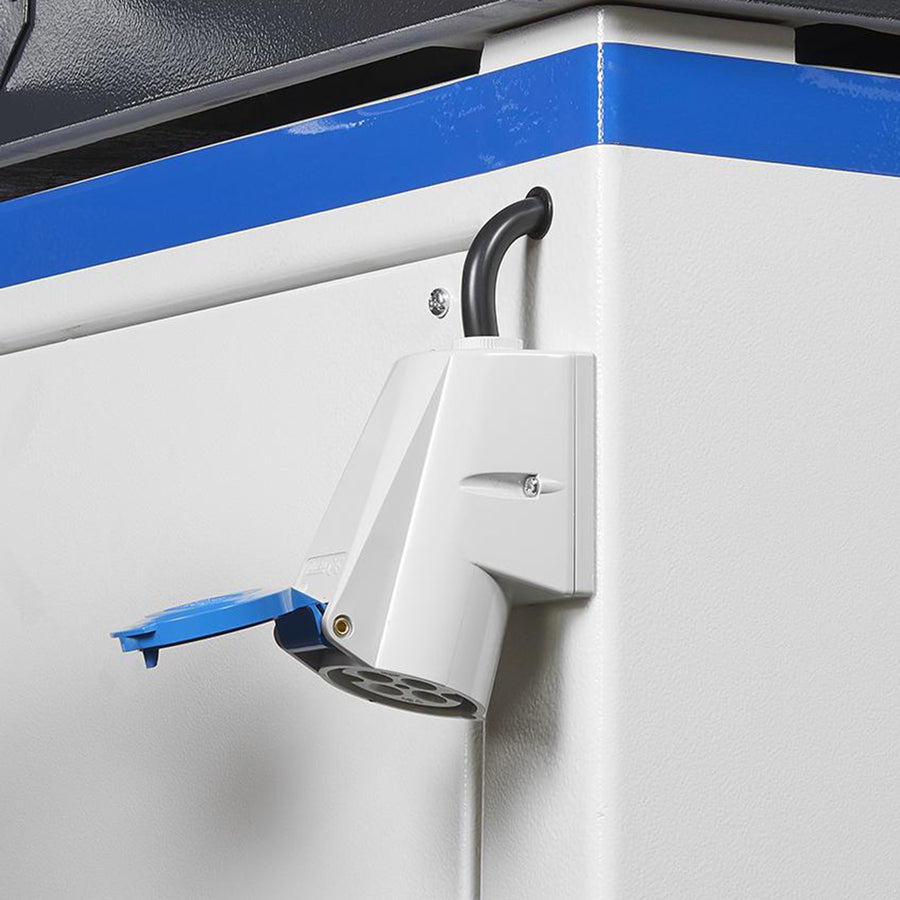

Electrical Connection*

230 Volts | 3-phase | 60 Hz.

   *460V power upgrades available upon request.  Additional charges may apply.
